Variable Frequency Drive (VFD) Solutions for HVAC Systems: Intelligent Energy Optimization for Fan & Pump Control

HVAC systems account for 40-60% of total energy consumption in commercial buildings. Traditional fixed-speed operation—where fans and pumps run at full capacity regardless of demand—creates massive waste. Variable Frequency Drive (VFD) technology solves this by enabling intelligent, demand-based speed control.

With 20 years of R&D experience and 156+ patents, AnyHz Drive provides specialized VFD solutions that achieve 30-50% energy reduction while enhancing system reliability and comfort.

Fan and pump power varies with the cube of speed. A 20% speed reduction (from 100% to 80%) yields 50% energy savings. This makes VFD extraordinarily effective since HVAC systems operate at partial load 80-90% of the time.

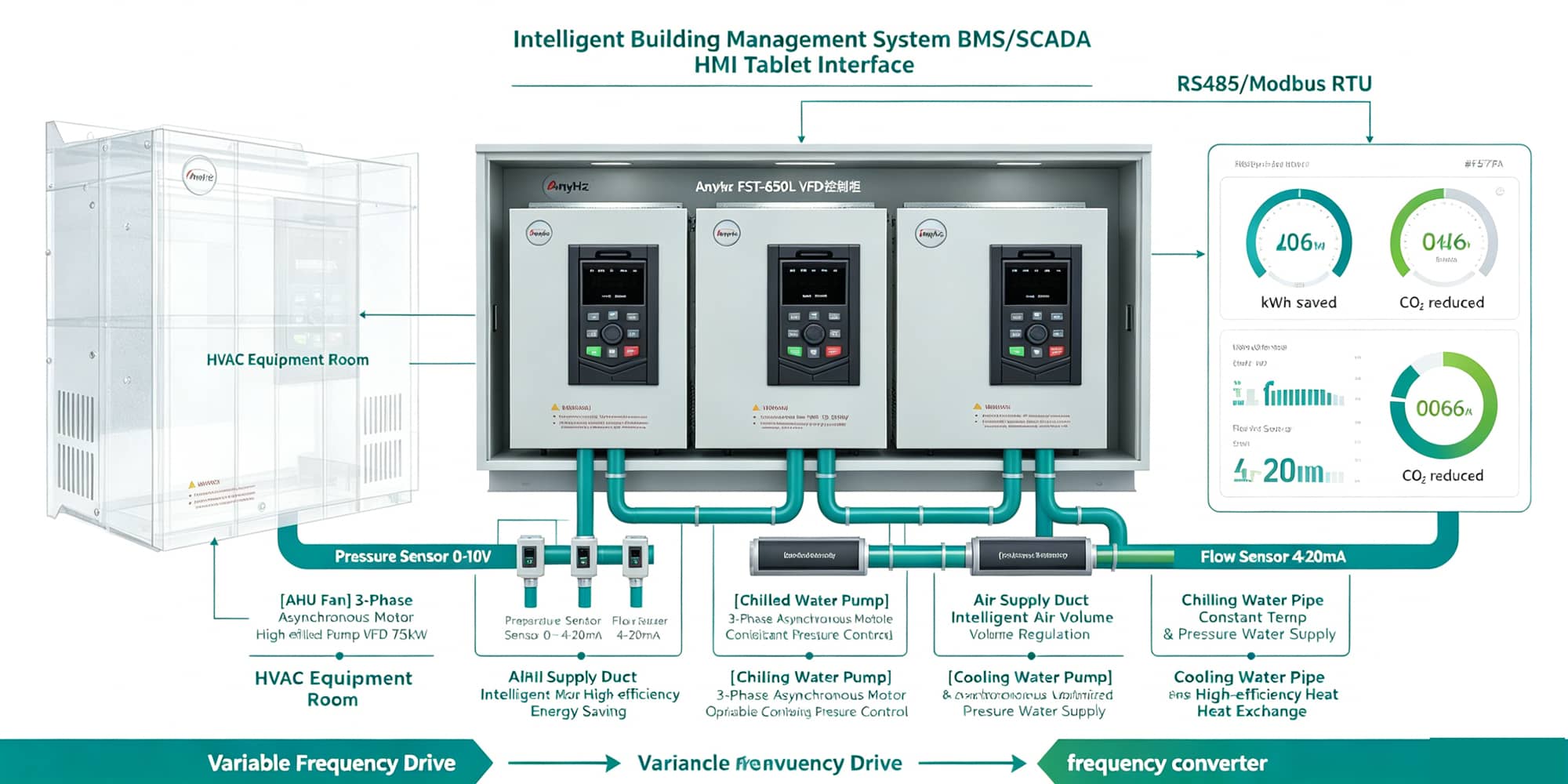

The flagship for large HVAC systems:

• Power Range: 0.75kW – 630kW
• Control Mode: High-performance flux vector control
• Key HVAC Features:
  • Multi-speed operation: 16 preset speeds for occupancy schedules
  • PID control: Built-in for pressure, temperature, humidity loops
  • Sleep/wake function: Auto-stops at low demand, restarts on pressure drop
  • Fire mode override: Maintains smoke extraction during emergencies
  • RS485/Modbus RTU: Seamless BMS integration

In a 200kW central air handling unit, the FST-650L modulates fan speed based on CO₂ sensors. During off-peak hours, speed drops to 40-50%, achieving annual savings of 180,000 kWh with payback under 18 months.

Ideal for distributed HVAC:

• Power Range: 0.4kW – 7.5kW
• Compact Design: 40% smaller than standard VFDs
• Key Features:
  • Silent operation: 1-16kHz carrier frequency
  • Auto torque compensation: Maintains airflow despite filter clogging
  • 15-second quick setup for standard applications

Deployed across 500 fan coil units in a hotel, the FST-500 reduces fan energy by 60% during unoccupied periods through occupancy sensor integration.

For high-dynamic processes:

• Power Range: 0.75kW – 75kW
• Specialty: 0.5Hz/150% starting torque for high-inertia fans
• Fast torque response: <5ms for sudden damper adjustments

1. Sensor: Pressure transmitter at farthest coil (setpoint: 2.5 bar)
2. Controller: FST-650L internal PID compares setpoint vs. actual
3. Action: Modulates pump speed to maintain pressure
4. Result: 35-45% pump energy reduction, eliminates "hunting"

• P (Proportional): 50-100%
• I (Integral): 0.5-2.0s
• D (Derivative): 0-0.5s (optional)

Project: 50,000m² Grade-A office tower in Shenzhen

Challenge: 4x 90kW supply fans at fixed speed, excessive energy use

Solution: 4× FST-650L-090G/110P with duct static pressure sensors

• Energy reduction: 42% (1,280,000 → 742,000 kWh/year)
• Cost savings: $65,000/year
• Payback: 14 months
• Motor life: Extended from 3 to 8 years
• Noise: Reduced from 78dB to 62dB

Project: 800-bed hospital in Guangzhou

Challenge: 3x 75kW pumps with constant flow, hydraulic imbalance

Solution: 3× FST-650L-075G/090P with master-slave cascade control

• System efficiency: 38% improvement
• Pump energy savings: 48%
• Maintenance: 60% fewer seal replacements
• Reliability: Zero downtime in 2 years

Project: 300-room hotel in Shanghai

Challenge: On/off control causing noise and temperature swings

Solution: 300× FST-500-0R7G with thermostat integration

• Guest complaints: Reduced from 15/month to 1/month
• Energy savings: 55% occupied, 80% unoccupied
• Noise: 45dB → 32dB
• ROI: 22 months

• Fan power: P = (Q × ΔP) / (η × 1000) [kW]
• Pump power: P = (Q × H × ρ × g) / (η × 1000) [kW]
• VFD sizing: Select ≥10% margin above motor rating

• Use shielded motor cables for runs >50m
• Install Class J fuses (1.5x VFD rating)
• Separate control wires >300mm from power cables
• Ground impedance <0.1Ω

• Baseline (Fixed Speed): 6,000h/year = 270,000 kWh
• With VFD Control:
  • 100% speed (2,000h): 90,000 kWh
  • 80% speed (3,000h): 69,120 kWh
  • 60% speed (1,000h): 9,720 kWh
  • Total: 168,840 kWh
• Annual Savings:
  • Energy saved: 101,160 kWh (37.5%)
  • Cost savings: 12,139 (@0.12/kWh)
  • Investment: $4,000 (VFD + sensors)
  • Payback: 4.0 months
  • 10-year NPV: $87,000

• ✅ Proven savings: 30-50% validated across 10,000+ installations
• ✅ HVAC-optimized: PID, sleep/wake, fire mode, BMS integration
• ✅ Reliable: 150% overload, -10°C to +50°C operation
• ✅ Expert support: Engineers with 10+ years HVAC experience
• ✅ Cost-effective: 20-30% lower than tier-1 brands

Ready to optimize your HVAC system? Contact AnyHz Drive for a free energy audit.

Established in 2005, AnyHz is a leading manufacturer of high-performance vector inverters with 3,000㎡ production facility and 150,000+ monthly output. We provide flexible customization, fast delivery (7-15 days), and comprehensive after-sales support.
